Improveddepthof field up to25mm

Improveddepthof field up to25mm

Maximum FOV 16x14mm

Extended Scanning Tip

Extended Scanning Tip

Scans a wider area without the tip touching the
handpiece-ensuring safer and more reliable infection control.

Newly Added Motion-Sensing Button

Newly Added Motion-Sensing Button

Newly added motion gesture control enables easy switching
between the upper and lower jawswith a single touch,
making remote operation simpler and smarter.

160g Lightweight Design

160g Lightweight Design

Lightweight scanner handpiece-only 160g.
Allows easyscanning for long hours without hand fatigue.
One-piece Casing
Seamless construction allows for easy wiping and
improved handling comfort.

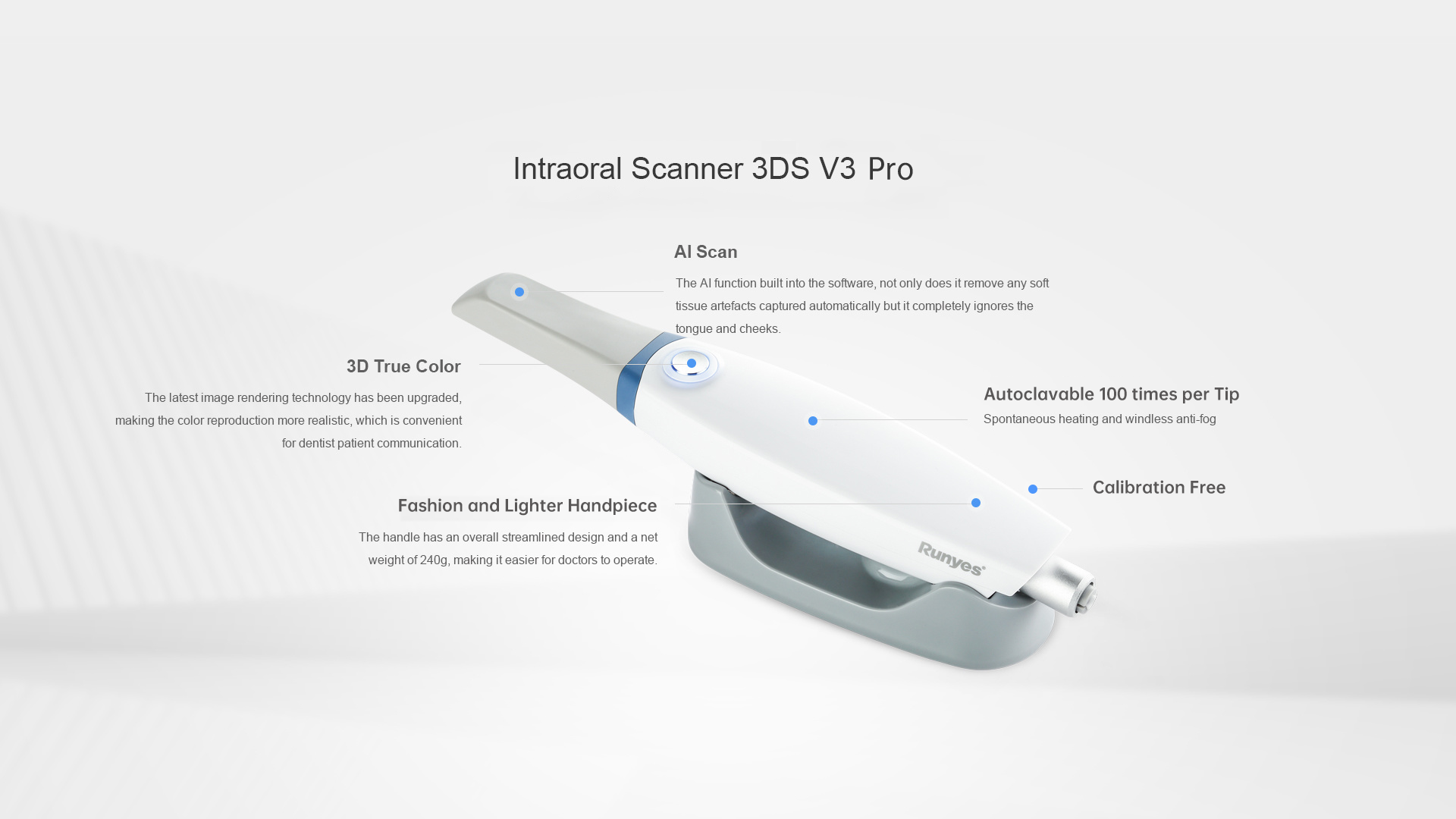

Runyes Intraoral Scanner 3DS V3

Product Details

Handpiece

Dimension (L × W × H)

240mm×49.5mm×30.5mm

Weight

210g







Tip

Standard tip size

79mm×19.7mm×15.8mm

Mini tip size

80mm×16mm×11mm

Scan area (Standard)

15mm×15mm

Scan area (Mini)

12mm×12mm

Depth of field

15mm

Autoclavable

Up to 100 times Autoclavable 121℃ 16 mins⼁Autoclavable 134℃ 4 mins

Accuracy

Crown

<10μm

Full arch

<20μm

Scan Speed

Single arch

30 s

Full arch with occlusion

90 s

Calibration

Calibration free

Output

STL, OBJ, PLY

Connectivity

USB 3.0

Multilingual System

Chinese,English, French, Spanish, Russian, Portuguese, Italian, Greek, Polish, Romanian, Japanese and Korean.
