1) Open water storage tank, easy to clean.
2) Large capacity: large 7L water storage tank, more durable.
3) The special water quality sensor detects the water quality of distilled water and reduces the failure rate of the machine.
Surgical instruments, dental instruments, glassware, injection equipment and other articles that can withstand pressure and high temperature steam.
1) USB: The motherboard can store 2000 cycles of data, and USB can be used to download data. You can view all records and print them through a computer.
2) Printer (optional): Print cycle data after the cycle ends
1) The pot body adopts a six-layer structure, one-time fine drawing forming, powder spraying and polishing, which has extremely strong pressure-bearing performance, and has passed 60000 fatigue life experiments. The outer layer is wrapped with ultra-fine microporous foaming technology.
2) After the tray rack is rotated 90 °, 5 trays are used to separate the sterilized items

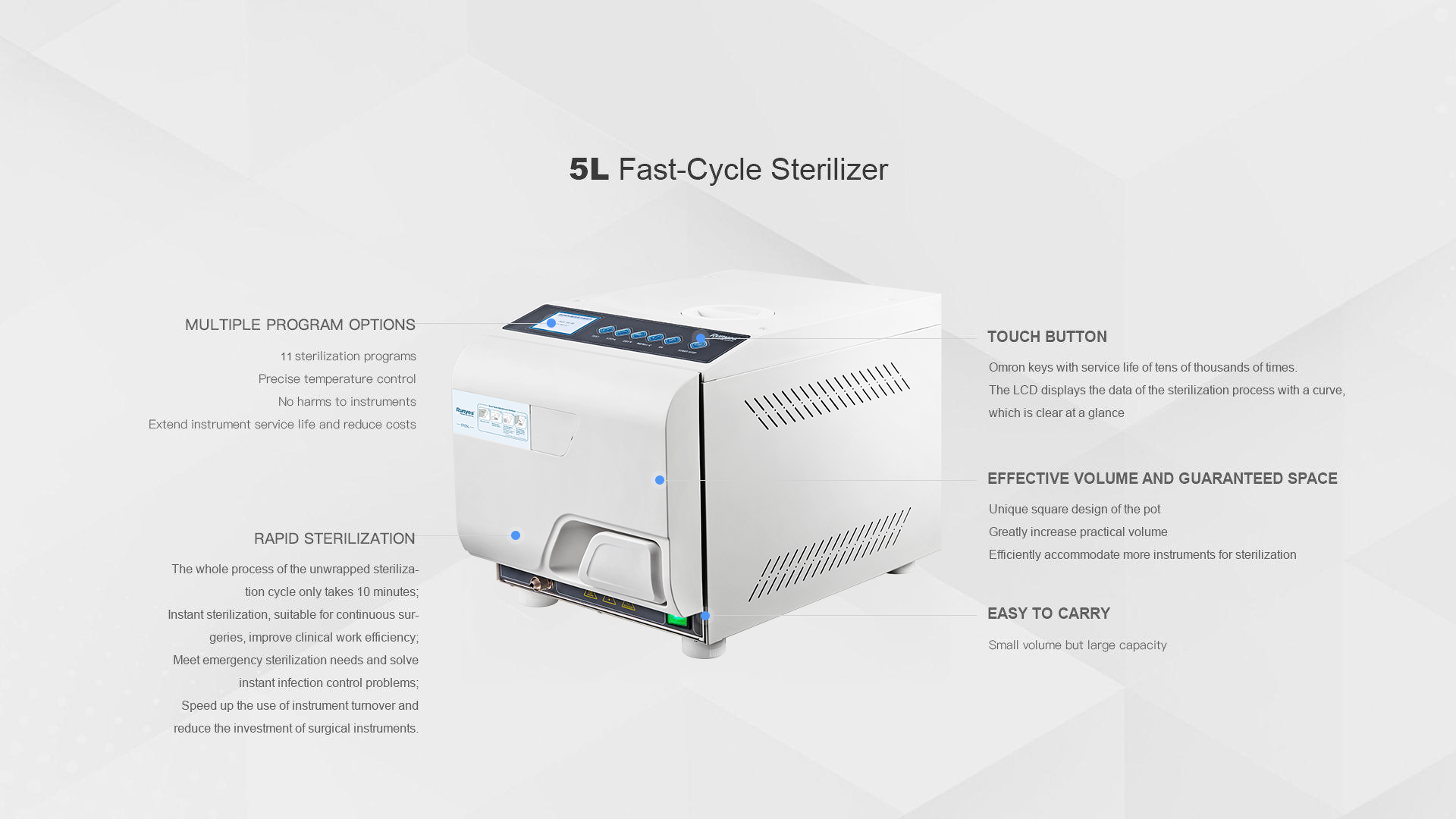

Sterilizer
隐藏域元素占位
Product Parameters
|
Project |
Parameters | Project | Parameters | |
|
Model |
STE 5L |
Storage tank volume (L) |
1L |
|
|
Overall dimension (length×width×height) mm |
500 × 310 × 320 |
Water consumption for primary sterilization (mL) |
200mL |
|
|
Sterilization chamber size (mm |
192 × 96 × 300 |
Minimum water supply |
250mL |
|
|
Sterilization chamber volume (L) |
5L |
Ambient temperature (℃) |
5℃~40℃ |
|
|
Sterilization chamber type |
B |
Relative humidity range |
850% |
|
|
Power supply rating |
AC220V/50Hz |
Net weight (Kg) |
26Kg |
|
|
Input power (VA) |
1800VA |
Gross Weight (Kg) |
30Kg |
|
|
Design pressure (Mpa) |
-0.1/0.3Mpa |
Instrument Residual Humidity ≤ 0.2% After Drying Residual Humidity ≤ 1% |
||
|
Design temperature (℃) |
140℃ |
Maximum vacuum ≤-92Kpa |
||
Details show
Back
Pot body structure
Control Panel
